140GHz FMCW 3D Radar 360° Scanning Non-contact Explosion-proof

Name: 140GHz FMCW 3D Radar 360 Scanning Noncontact Explosionproof
Brand: NUOYINGJIAYE
Price: 420 USD

Quality 140GHz FMCW 3D Radar 360° Scanning Non-contact Explosion-proof wholesale

Brand Name : NUOYINGJIAYE

Model Number : NYRD701（PTFE）

Certification : Explosion-proof certificate

Place of Origin : China

MOQ : 1

Price : $420 to $1850

Payment Terms : T/T

Supply Ability : 1000 pcs/ pre month

Delivery Time : 1-3 work days

Packaging Details : 40cm×30cm×30cm

Typical application : Liquids, powders, solid particles, corrosive media

Antenna material : Flexible cable/304/PTFE (optional)

Process connection : Screw thread, Flange(optional),

Operating temperature : -40~130℃

Signal output : 4-20mA, 4-20mA/HART(Two wire/FOUR wire)

Frequency range : 1.8GHz

Accuracy : ±1mm

Power supply : 24VDC or 220VAC

Contact Now

NYRD3000-3D Explosion-proof Scanning Imaging Radar

The explosion-proof scanning imaging radar can perform real-time material scanning of storage silos, tanks, and storage sheds at room temperature through a 360° two-dimensional axial scanning. It enables functions such as static target detection within the spatial range, point cloud data output, spatial scanning imaging, volume and weight calculation output, and is not affected by adverse environments such as rain, dust, and light.

Product advantages

· Two-dimensional axial 360° scanning for high-precision imaging of the target;
· The antenna beam angle is small, resulting in more accurate measurement and a longer detection distance;
· The farthest imaging radius is 50 meters;
· The volume calculation error is ≤ 3%;
· The scanning time is ≥ 30 seconds;
· Equipped with a high-precision attitude sensor for self-correction of inclination;
· Standard flange connection, and the imaging host can output the material surface and volume;
· Works all-weather, unaffected by rain, dust, light, temperature and other environmental factors;

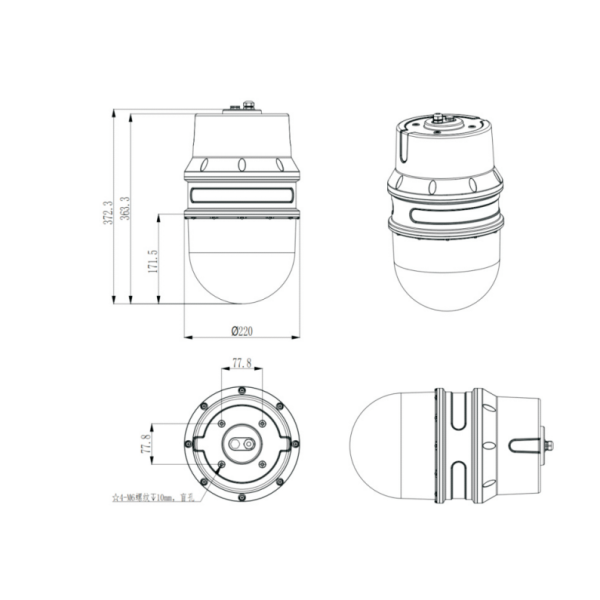

Product size

140GHz FMCW 3D Radar 360° Scanning Non-contact Explosion-proof

技术参数

Technical Specifications

140GHz FMCW 3D Radar 360° Scanning Non-contact Explosion-proof Images
